The Thermwood Multi-Purpose Five Axis Series combines all the elements needed for trimming of large aerospace and composite materials as well as machining large format patterns and molds/plugs for the aviation and defense industries.

Here we look at the Thermwood Model 77.  This heavy-duty, high-speed, moving gantry machine is ideal for machining large applications using heavy fixtures.

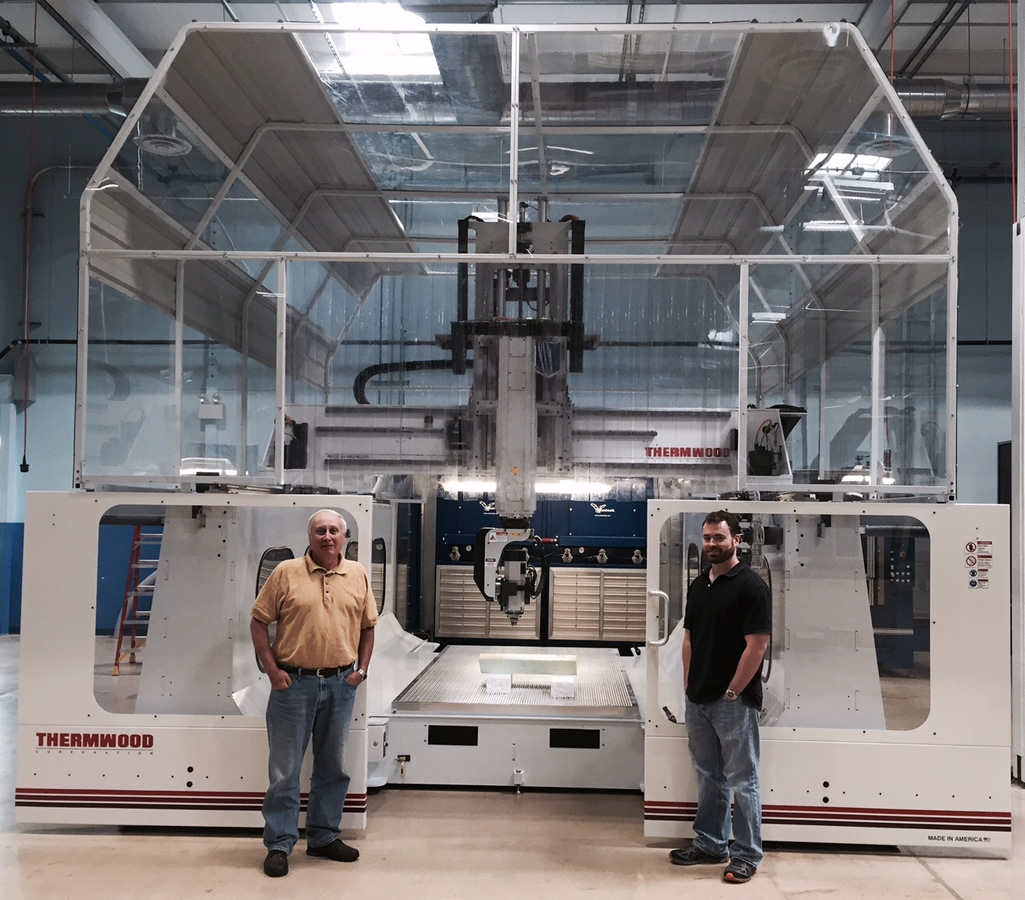

Lenny and Mike with their newly installed Thermwood Model 77 5'x10' 5 Axis CNC Router

Lenny and Mike with their newly installed Model 77 5’x10’ 5 Axis CNC router featuring an enclosed overhead cap cover, 10 position rotary automatic tool changer, 36" Z Axis, gantry lighting system, access doors and rear dust extraction booth.

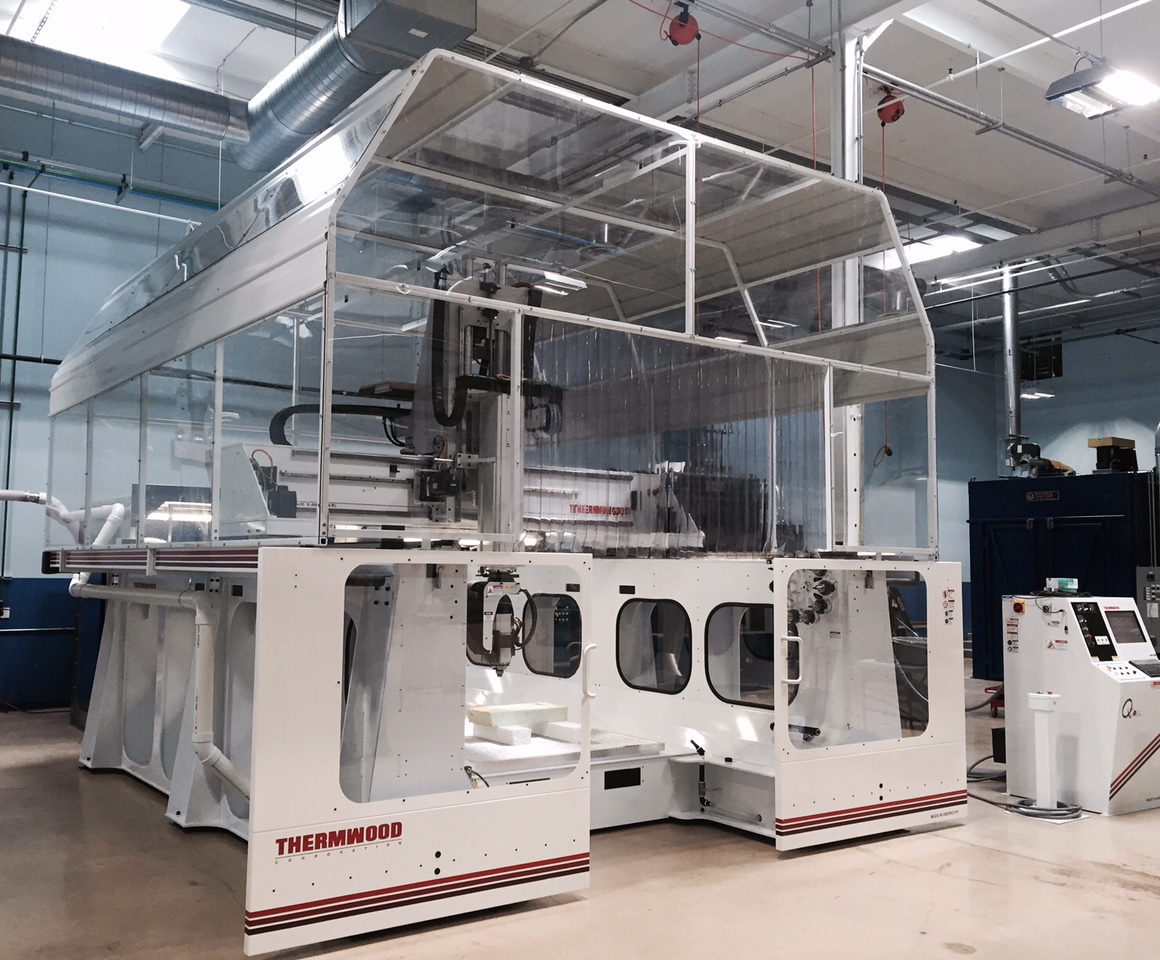

Thermwood Model 77 5x10 CNC Router

Available Table Sizes:
10'x10', 10'x20', 10'x30', 10'X40' and up in 10' increments in length

Features:

  • 12 HP 24,000 RPM Router with a 4 Position Automatic Tool Changing System (Standard)
  • 21.5 HP 24,000 RPM Router with a 4 Position Bar Style Automatic Tool Changing System (Optional)
  • 16 HP 24,000 RPM Router with a 4 Position Bar Style Automatic Tool Changing System (Optional)
  • Multi-Function Vacuum Table Section (Optional)
  • Extended Z Axis: 36" vertical (Standard)
  • Extended Z Axis: 48" vertical (Optional)
  • Extended Z Axis: 60" vertical (Optional)
  • 5 Axis Chip Collection Hood (Optional)
  • Ten Position Rotary Automatic Tool Changer (Standard)
  • Additional Ten Position Rotary Automatic Tool Changer (Optional)
  • Constant Tip Speed Machining (Standard)
  • Tip Center Rotation (Standard)
  • Dust Extraction Booth (Optional)
  • Automatic Tool Length Measurement (Optional)
  • Automatic Tool Length Sensor (Standard)
  • Automatic Lubrication System (Standard)
  • Gantry Lighting System (Optional)
  • Accu-Lube Mist Coolant System (Optional)
  • Machine Canopy (Optional)
  • Impact Resistant Five Axis Head (Optional)
  • Continuous C Axis (Optional)
  • Remote Start/Stop Pedestal (Optional)
  • Three-Dimensional Laser Compensated Axis Alignment
  • Siemens Intelligent Servo Drives Throughout
  • QCore SuperControl
  • Machine Training and Installation

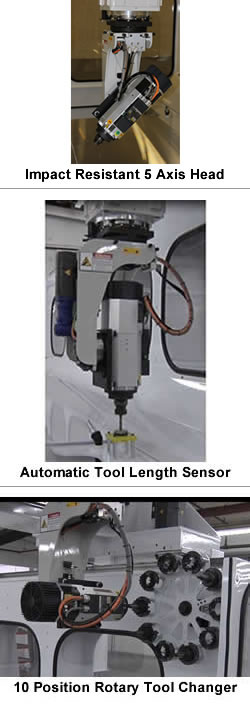

 Thermwood Model 77 Options

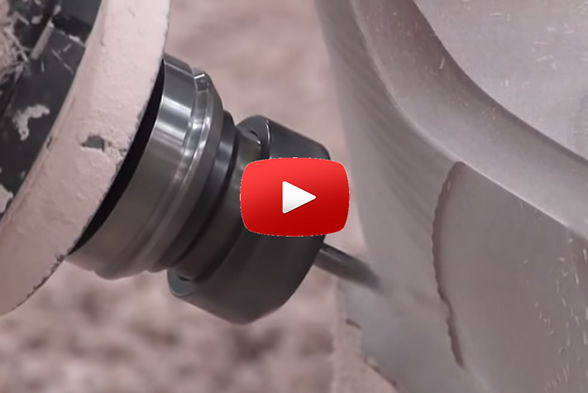

Thermwood Model 77 5 Axis CNC Router Machining

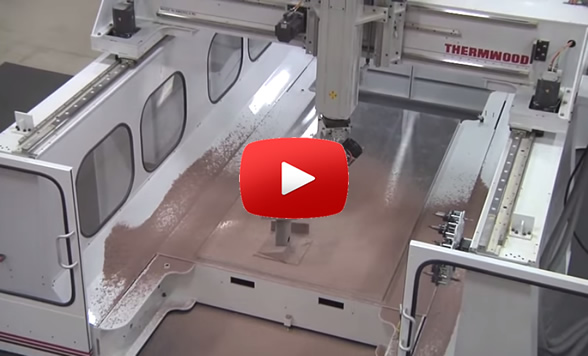

Thermwood Model 77 Machining Ren Shape Pattern

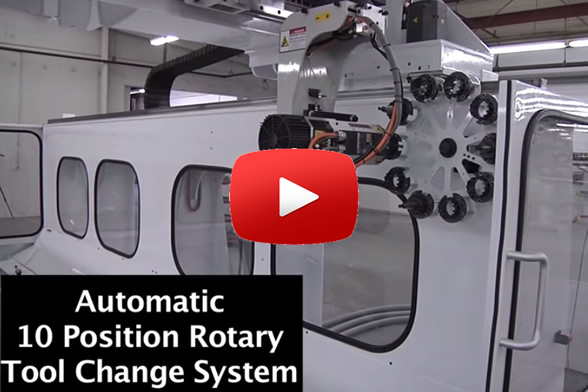

Thermwood Model 77 5 Axis Machining Center

See Thermwood at:


We will be exhibiting at JEC World 2018 in Paris, France on March 6th-8th and Aerodef Manufacturing 2018 on March 27th-28th in Long Beach, CA.


Our knowledgable reps will be on hand to discuss our entire line of 5 axis CNC routers, including the powerful Model 77.
