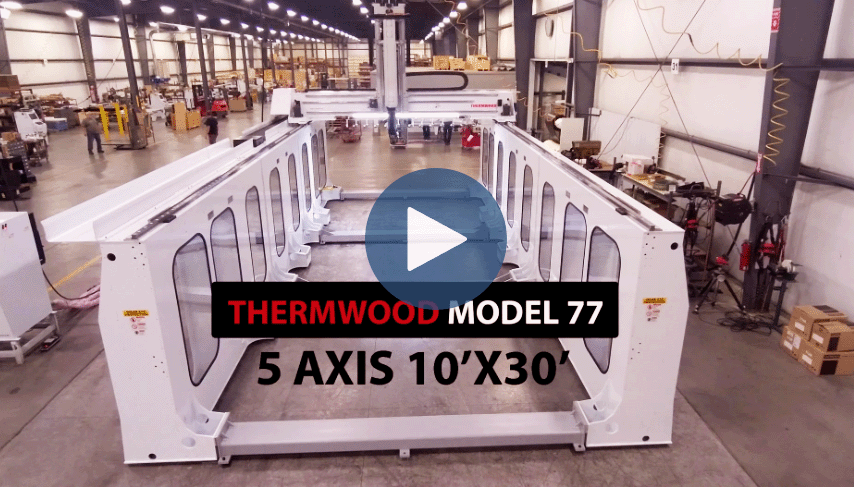

The Thermwood Model 77 is a heavy-duty, high-walled contained system designed for precision machining of large composite and aerospace materials.  Available in sizes ranging from 5'x10' to 10'X40' and beyond, it delivers unmatched performance in demanding applications.

Main Features:

✅ 60" Z-axis for machining large components
✅ 13 HP, 24,000 RPM variable-speed router for high-performance cutting
✅ 12-position under-gantry automatic tool changer for seamless operation
✅ High-tolerance tool length sensor for accuracy and efficiency
✅ Wireless probe position verification system for precise part alignment

Key and Optional Features:

✅ High-wall construction with heavy-duty metal entrance doors and polycarbonate viewing windows
✅ Machine canopy with clear polycarbonate panels and extrusion supports
✅ 19 HP, 24,000 RPM variable-speed router for high-performance cutting
✅ Five-position bar-style automatic tool changer for seamless tool transitions
✅ Interlock door safety switches and a full machine canopy enclosure for added safety
✅ Extended 60" Z-axis (upgraded from the standard 36" Z-axis)
✅ 1 1/2" thick aluminum base plate table with conventional vacuum, valve, and fixture plumbing
✅ High-flow vacuum hold-down with dual ports and pneumatic open/close switches
✅ Integrated dust collection with an interlock safety switch and spindle nose zipper duct
